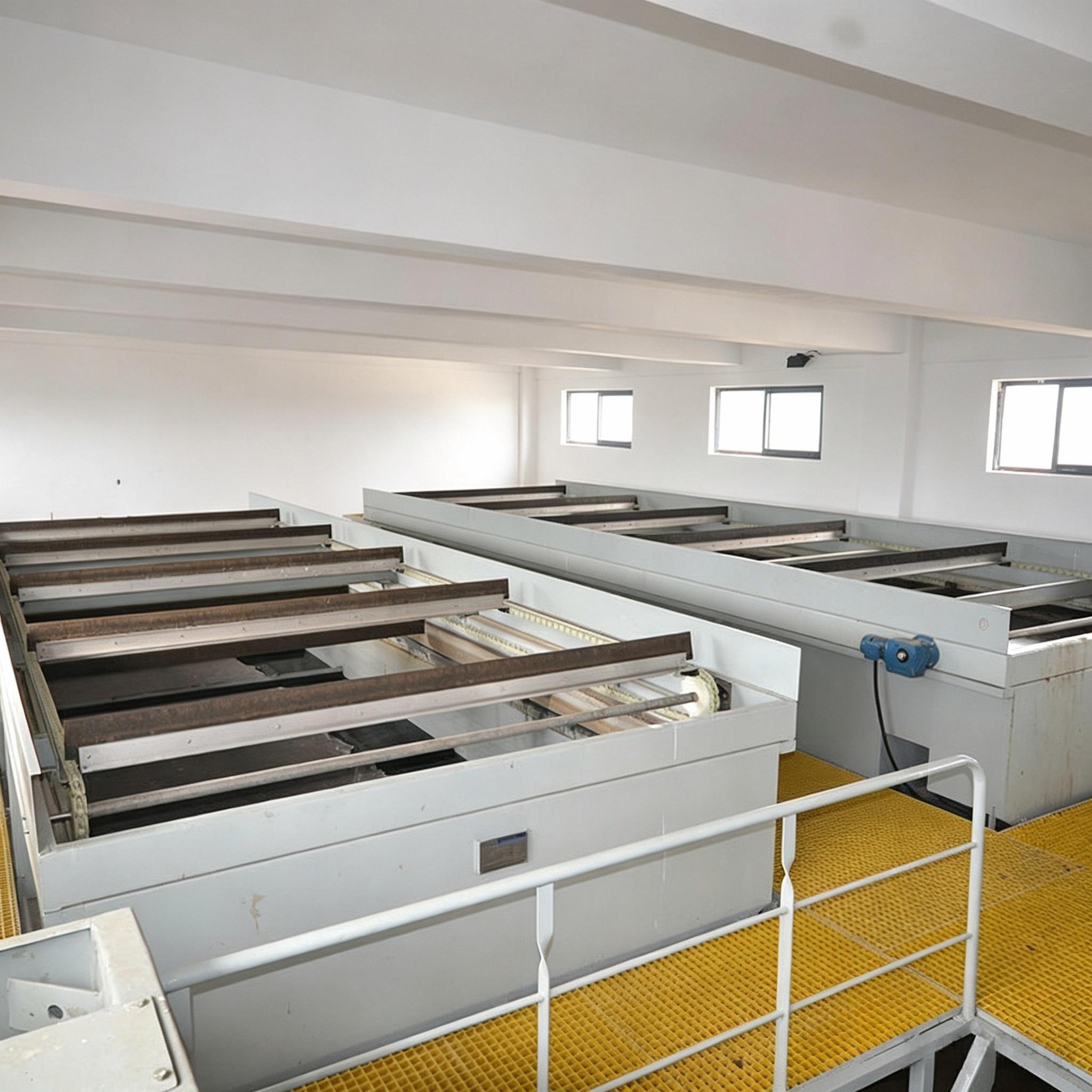

DAF2 Stainless Steel Air Flotation Machine 10-150m³/h for Textile Dyeing Wastewater Treatment

Name: DAF2 Stainless Steel Air Flotation Machine 10150mh for Textile Dyeing Wastewater Treatment
Brand: DUBHE
Price: 9 USD

Solid Content : 30-100 g/L

Place of Origin : Jiangsu, China

Treatment Capacity : 10-150 m³/h

MOQ : 1 Set

Supply Ability : 30 Sets per Month

Application : Textile Dyeing, Nonwoven Fabrics, Printing and Dyeing, Denim Washing

Delivery Time : 25-40 working days after order confirmation

Skimmer : 0.2 kW

Certification : ISO 9001:2015

Packaging Details : Export-grade plywood crate with VCI anti-rust protection, desiccant packs and reinforced steel frame for ocean freight

Dissolved Air Pump : 1.5-18.5 kW

Sludge Hopper : W-Type

Model Number : DAF2-TX Series

Allowable Floating Matter : Up to 4000 mg/L

Brand Name : DUBHE

Payment Terms : T/T,L/C,Western Union

Price : USD 9,000 - 40,000 / Set

Material : Stainless Steel 304 / 316L

Name : Air Flotation Machine

Hydraulic Load : 4-8 m³/(m²·h)

Contact Now

DAF2 Air Flotation Machine for Textile Dyeing Wastewater Treatment

Our DAF2 Air Flotation Machine (Model DAF2-TX Series) is the upgraded dissolved air flotation system proven in textile dyeing and nonwoven fabric wastewater treatment - including a 120 m³/h installation at a leading global hydroentangled nonwoven fabric producer. The DAF2 removes dyes, fibers, sizing agents and suspended solids from textile effluent, protecting downstream biological treatment and enabling water reuse. Trusted by textile mills across Mexico, Brazil, Chile, Peru, Colombia and South Africa.

Key Features & Benefits

Proven Textile Industry Performance: Field-proven in nonwoven fabric and dyeing wastewater with heavy color loads and fiber content.
Eliminates Sedimentation Problems: Prevents sediment buildup in pre-treatment, ensuring stable effluent quality and operation.
High Load Tolerance: Handles up to 4000 mg/L influent flotation concentration at 4-8 m³/(m²·h) hydraulic load.
Automatic Slag Discharge: Continuous skimming with 30-100% solid content sludge, reducing downstream sludge handling cost.
Demountable Stainless Steel Unit: SS304/316L construction with modular design for easy transport and rapid installation.

Technical Specifications

Standard DAF / IDAF Dissolved Air Flotation Equipment Technical Data Sheet
Model	Capacity	Power (kW)					Dimension (m)				Nozzle list (DN)
DAF/ IDAF	m³/h	Recycle pump	Air compressor	Skimmer	IDAF Fast mixer	IDAF Slow mixer	DAF L₁/L₂	IDAF L₁/L₂	W₁/W₂	H₁/H₂	Inlet (a)	Outlet (b)	Sludge outlet (c)	Vent nozzle (d)
003	~3	0.75	0.55	0.12	0.37	0.25	3.6/2.8	4.1/3.2	2.4/1.2	2.2/1.7	50	50	80	80
005	~5	1.1	0.55	0.12	0.37	0.25	3.8/3.0	4.4/3.6	2.4/1.2	2.2/1.7	80	80	80	80
010	~10	4	0.55	0.12	0.37	0.25	4.3/3.3	5.0/4.0	2.9/1.7	2.4/1.9	100	100	100	100
020	~20	4	0.75	0.12	0.37	0.25	5.7/4.8	6.2/5.2	3.2/2.2	2.4/1.9	150	100	100	100
030	~30	5.5	0.75	0.12	0.37	0.25	6.5/5.5	7.7/6.7	3.2/2.2	2.4/1.9	150	150	150	100
040	~40	5.5	0.75	0.12	0.75	0.37	6.5/5.5	7.7/6.7	3.6/2.7	2.4/1.9	200	200	150	100
050	~50	7.5	0.75	0.12	0.75	0.37	7.3/6.3	8.8/7.8	3.6/2.7	2.4/1.9	200	200	150	100
080	~80	11	1.5	0.12	1.5	0.37	8.9/7.6	10.6/9.2	4.4/3.4	2.7/2.3	250	200	150	100
100	~100	11	1.5	0.12	1.5	0.37	10.8/9.4	13.2/11.8	4.4/3.4	2.7/2.3	300	250	150	100
120	~120	11	2.2	0.12	1.5	0.37	11.7/10.4	14.2/12.8	4.4/3.4	2.7/2.3	300	250	150	100
150	~150	15	3	0.12	1.5	0.37	13.5/12.0	15.8/14.4	4.5/3.8	2.7/2.3	300	300	150	100

Textile Applications

Suitable for textile printing and dyeing mills, nonwoven fabric production, denim washing and garment processing wastewater. Spanish and Portuguese documentation, remote commissioning and operator training included.

Contact our team today for a free effluent analysis and a DAF2 proposal tailored to your textile wastewater project.
